Edith Green Wendell Wyatt

SERA Architects reinvents a 1970s office building in Portland, Oregon, as a metaphor for sustainable and transparent government.

The Edith Green-Wendell Wyatt (EGWW) Federal Building is an existing 18-story, 512,474 sf office tower located in downtown Portland. Originally completed in 1974, the building’s mechanical, electrical, data and fire and life safety systems were outdated and worn out.

Details

Name

Edith Green Wendell Wyatt

Client

U.S. General Services Administration

Scale

512,474 SF

Status

Completed 2013

Location

Portland, OR

Funding

American Recovery and Reinvestment Act

Sustainability

Certified LEED NC, Platinum 2013, and Certified LEED EB Platinum 2016

Services

Sector

Specialties

18 stories, 525,000 square feet and every square inch reborn for the 21st century

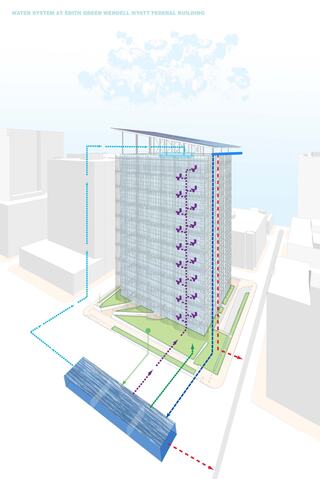

The work was funded by the American Recovery and Reinvestment Act ARRA, which required the project to meet the significant energy water conservation requirements of the Energy Independence and Security Act EISA. EGWW is LEED Platinum certified and will use 60-65 less energy than a typical office building. Combined with a unique rainwater harvesting system, which is estimated to achieve greater than 65 potable water savings, the project exceeds the ARRA requirements and is projected to be one of the lowest energy use buildings in the United States.

How do you transform an aging, inefficient ‘70s concrete box of an office building and make it meet the stringent energy and water conservation requirements of the Energy Independence and Security Act (EISA) ?

Building science through design

“What does sustainability look like?” is a question the design team was continually asked. With the largest PV array in an urban core in the country, the canopy at EGWW is a striking example of sustainability manifest in the design. Generating 5% of the building’s total energy and collecting over 2 million gallons of water every year, the canopy is the prime example of where BIM was optimized to find the right solution.

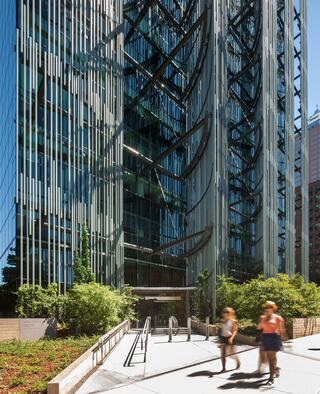

A radiant panel heating and cooling system was used in order to meet the energy requirements of the building. To optimize the system, a robust shading system was needed to limit the amount of solar gain.

Beauty rooted in function

Every building system was improved, including a new energy-efficient building envelope, new highly energy-efficient mechanical, electrical, and voice/data telecommunications systems, a blast-resistant curtain wall, tenant and core upgrades and seismic structural upgrades. The EGWW Federal Building is poised to be GSA’s national model for energy efficient renovation.

Designing for Impact

Environment

EGWW is LEED Platinum certified and will use 60-65% less energy than a typical office building

Economics

Careful demolition eliminated over $1 million in contingency, which was used to buy additional sustainable design features.

Awards

2015 AIA/WA Civic Design Awards

Citation Award

2016 AIA COTE

Top Ten + Award
